PASS/NOZZLE-FEM 3.6. Program Manual

3.2.7. Tab: Support leg

The panel "Support leg" allows you to set and change the support leg section parameters, reiforcing and its placement (fig. 3.9). If you select "No attachment" in the "Project properties" dialog, the Support leg tab with this attachment parameters dialog will not be displayed.

For a more detailed description of the structure, see: Support leg setting.

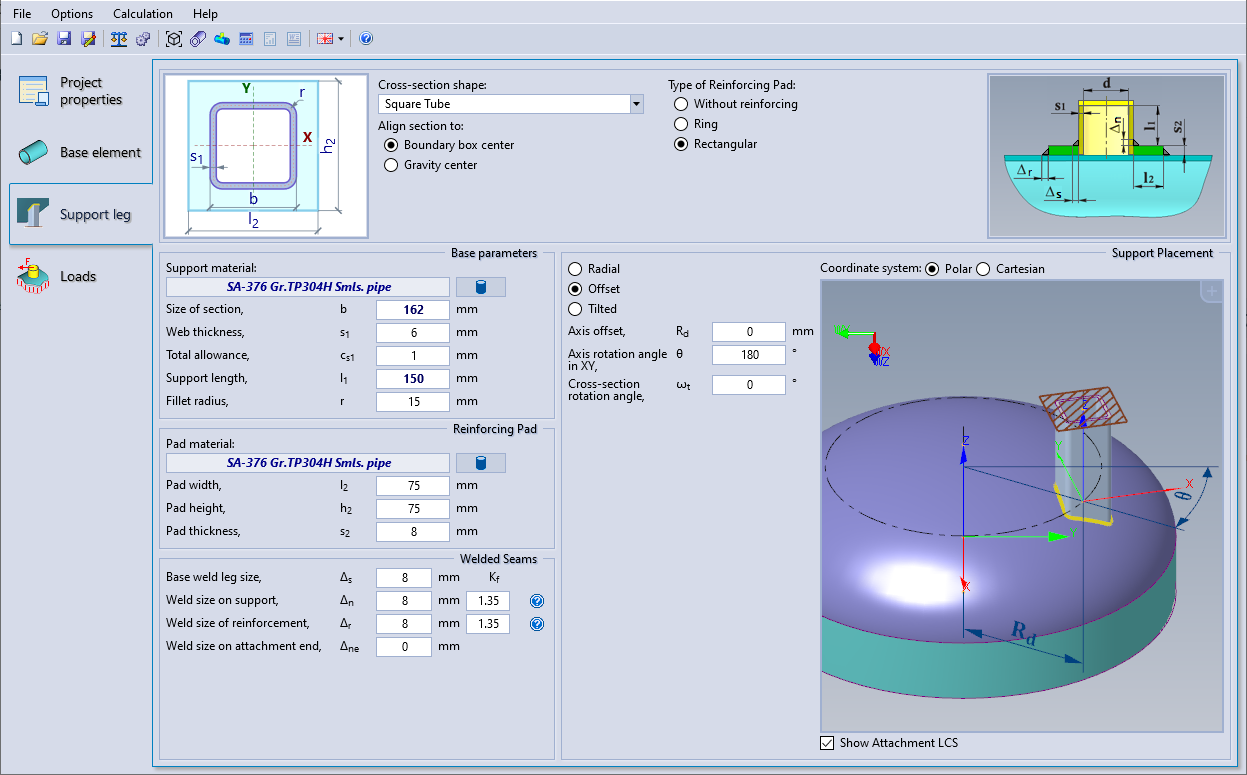

Fig. 3.9. Panel for setting of support leg properties.
