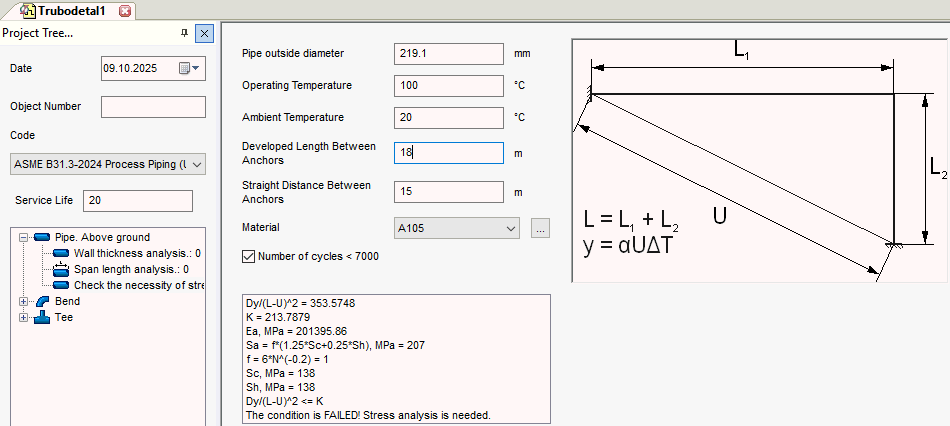

This analysis determines if the piping system has adequate inherent flexibility to satisfy code requirements without detailed stress analysis. Refer to ASME B31.1 119.7.1, ASME B31.3 319.4.1, and similar code sections.
Property |
Description |
Total developed length between anchors |
L1 + L2 |
Straight-line distance between anchors |
U |
