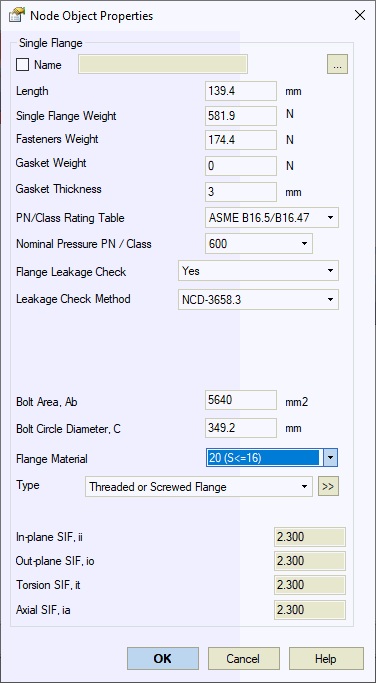

Single flange element models valve counter flanges and similar components.
Property |
Description |
Name |
Element identifier. When checked, displays in 3D view. |
Length, H |
Flange length excluding gasket thickness. |
Single Flange Weight |
Flange weight retrieved from component database. |
Fasteners Weight |
Fastener weight retrieved from component database. |
Gasket Weight |
Gasket weight retrieved from component database. |
Gasket Thickness |
Gasket thickness added to total flange length. Retrieved from component database. |
Flange Code |
Select flange standard: GOST, ASME B16.5, or EN 1092-1. |
Nominal Pressure PN / Class |
Pressure rating: PN for GOST and EN 1092-1 flanges, Class for ASME B16.5 flanges. |
Insert > Insert Single Flange
